AC200
200kW resistive load bank
Load capacity, kW = 200
Available voltages, V AC = 400, 415
Frequency, Hz = 50 (60 with external auxiliary supply)
Control options = Manual or Digital
Portability = 4 wheels and handle
Key Features
-
Easy connections

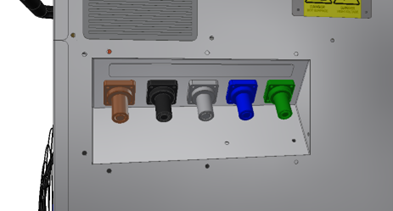

Powerlock style connectors fitted to the main load terminals make connection to the supply under test simple, fast, and secure. The power connections are located away from the control panel.
-
Easy controls
Whether selected with simple toggle switches or Digiload touchscreen, the control interface is always intuitive and easy to use.
-
Reliable construction
The resistor elements used are from our catalogue of highly robust industrial stamped grid technology using stainless steel. The construction puts the cooling airflow in direct contact with the conductor surface to maximise heat transfer, thus providing the longest possible operating life for the elements.
200kW load bank technical specification
Voltage rating
400V 3-phase AC 50Hz (or 60Hz with external control supply)
Power ratings
3-phase
Load step resolution 5.0kW
Max. capacity 200kW
1-phase
Load step resolution 1.67kW
Max. capacity 66.7kW
Control and Ventilation
Manual controls
Supply source rotary isolator
Fan start/stop buttons
Emergency stop button
Control interface 7” touch screen display
Cooling Forced convection
Fans 1 x 2.7kW AC fan, axial type and 2 x control cabinet fans
Noise 88dB at 1m
Control supply 400V 3-phase AC 50Hz
Source Internal (supply under test) or external supply (recommended)
Connection Interfaces
Load connections 5 x Powerlock plugs (drain); 3P, N & PE.
External control supply 1 x EN 60309 5-pin 16A plug (inlet); 3P, N & PE
Data downloads 1 x USB Type A
Networking/ remote 1 x RJ45 & 1 x 8-pin (remote power and e-stop)
Operating Environment
Suitable for outdoor use
Ambient temperature 5°C to 40°C
Ingress protection
IP23 Load enclosure
IP54 Control cabinet
Construction
Resistor elements Stamped grid and wire coils
Element material Stainless steel
Main enclosure Dual layer; galvanised sheet steel, painted RAL9002 grey
Portability
4 x heavy duty castors (2 x braked)
2 x fork lift pockets
Weight and Dimensions
Length 1270mm
Width 894mm
Height 1370mm
Weight 300kg
Safety
Electrical protection
Over current and short circuit fuse protection
Over voltage protection (via control system)
Thermal protection
Thermal trips for load and control compartments
Airflow status
Optional extras
Remote Control - the Digiload Remote provides the ability to control a load bank via a wired connection. Housed in a rugged IP66 case it includes a 10” touch screen & emergency stop.
Protective PVC cover - available for additional protection during transport or storage.
Supply cables - Lengths of 5m, 10m, 25m as standard. Terminated each end with Powerlock source sockets (for load bank connection) and cable lugs (for connection to supply under test).
Anchor bolt mounting plates - available for permanent installation. (no-cost option since supplied instead of heavy duty castors)
