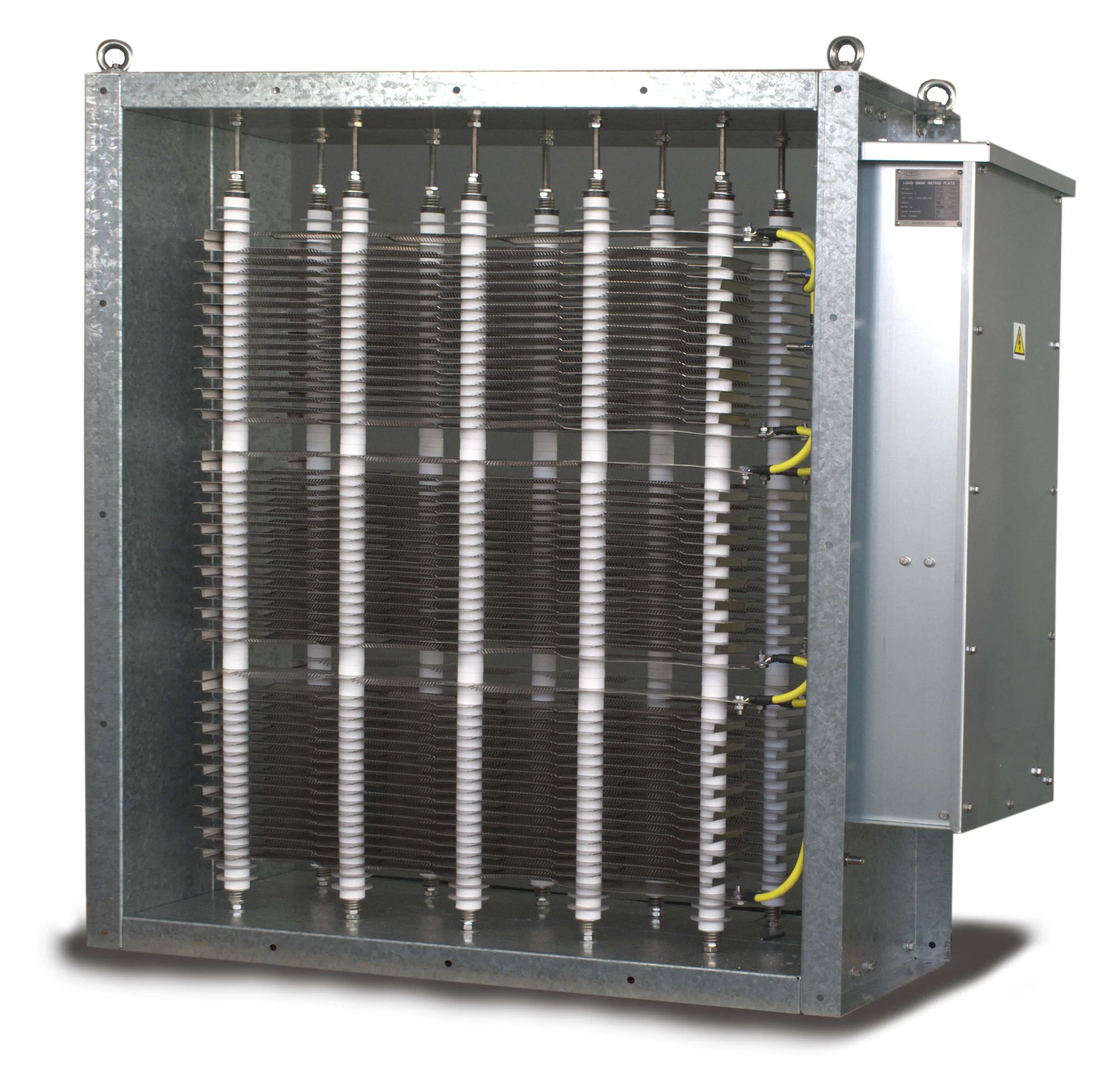

RADIATOR MOUNTED
10-800kW radiator mounted load banks
As radiator mounted load banks integrate with generator cooling systems, they allow heat to easily be dissipated without the need for a fan.
The lack of a fan makes them more space-efficient than many load banks, and they are particularly effective in applications like ballast loads and integrated loads.
Load capacity (kW)
10 to 800
Available voltages (VAC)
400 (others on request)
Frequency (Hz)
50/60
Control options
Supplied with or without load section contactors
Key features
Ballast load
A radiator mounted load bank makes it possible to add a ballast load on the generator when running with a light application load for long periods of time.
Increasing the load ensures efficient combustion and operation of the generator, preventing wet stacking issues.
Integrated load
Integrating a load into the generator package enables load tests to be run frequently and easily either with a smaller external load bank or without the need for an external load bank.
This means that, alongside managing ballast loads, radiator mounted load banks are also valuable where generators are installed in locations with limited accessibility.
Load step control
Radiator mounted load banks are offered with 2 load steps, each 50% of the total power rating. This provides an incremented step for the ballast or test load possible.
As an optional extra, load section contactors can be installed in the connection compartment for remote control of the load.
Radiator mounted load bank technical specification
Voltage rating
Connection interfaces
Operating environment
400V 3-phase 3-wire AC 50Hz/60Hz
Other voltages available on request
Control and ventilation
Main controls
Option 1 - Direct connection to load (no controls)
Option 2 - Load section contactors (with coils wired to terminals for external integration)
Cooling
External forced convection airflow required, horizontal orientation
Air inlet temperature
80°C maximum
Control supply
230V AC 1-phase (only required on option 1)
Load connections
3x Copper palms with through holes
External control supply
DIN mount 2.5mm.sq terminals
Suitable for
Indoor use only (for installation into generator cooling duct/ canopy
Ambient temperature
5°C to 40°C
Ingress protection
IP00 Load compartment, IP54 Control cabinet
Construction
Resistor elements
Tubular type up to 60kW, expanded mesh above 60kW up to 300kW, then pressed-strip type above 300kW
Element material
Stainless steel (CrAl or NiCr grades used)
Main enclosure
Pre-galvanised steel, natural finish
Other materials such as stainless steel available on request.
Weight and dimensions
Dependant on power rated selected - see datasheet.
